TRANSFER AUTOMATION

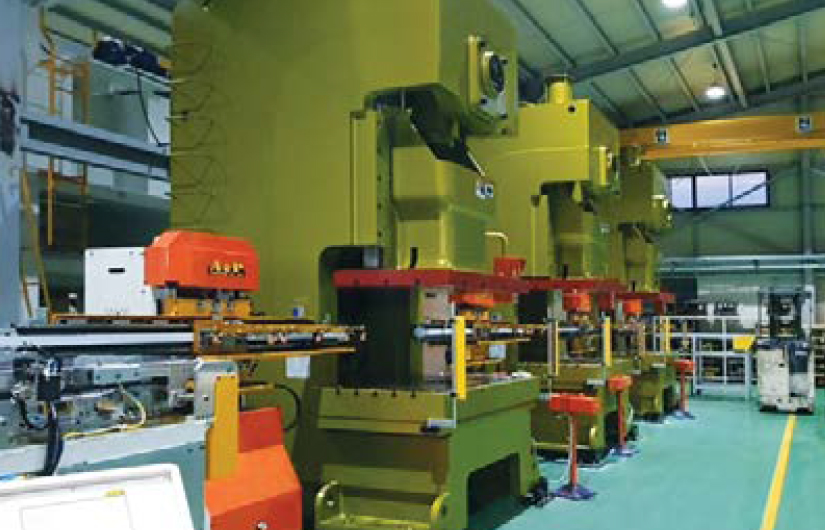

LINEAR TRANSFER ROBOT (SINGLE ARM)
■ Flexible Robot’s location minimize floor occupying space.
■ No need to make each pass-line height same.
■ Taking less cycle time by letting Press work without stopping at top position – Continuous press work
■ Easier position adjustment by putting NC data.
■ No idle stage is required

| SPECIFICATION | |
| Feeding Stroke | 5500 (2750 x 2)mm |
| Lifting Stroke | 200mm |
| Work Weight | 5Kg |
| Feeding Motor | AC Servo Motor Type |
| Lifting Motor | AC Servo Motor Type |
| Clamping Method | Vacuum or Magnet |
| Feeding Stroke | 5500 (2750 x 2)mm |

TRANSFER AUTOMATION

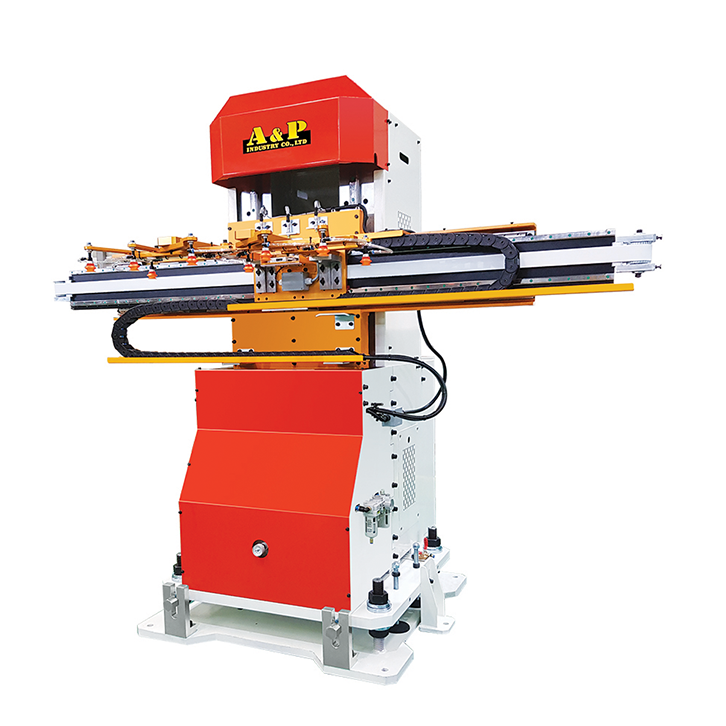

리니어 트랜스퍼 로봇(싱글암)
■ Flexible Robot’s location minimize floor occupying space.
■ No need to make each pass-line height same.
■ Taking less cycle time by letting Press work without stopping at top position – Continuous press work
■ Easier position adjustment by putting NC data.
■ No idle stage is required

| SPECIFICATION | |
| Feeding Stroke | 5500 (2750 x 2)mm |
| Lifting Stroke | 200mm |
| Work Weight | 5Kg |
| Feeding Motor | AC Servo Motor Type |
| Lifting Motor | AC Servo Motor Type |
| Clamping Method | Vacuum or Magnet |
| Feeding Stroke | 5500 (2750 x 2)mm |
