TRANSFER AUTOMATION
3D TRANSFER ROBOT

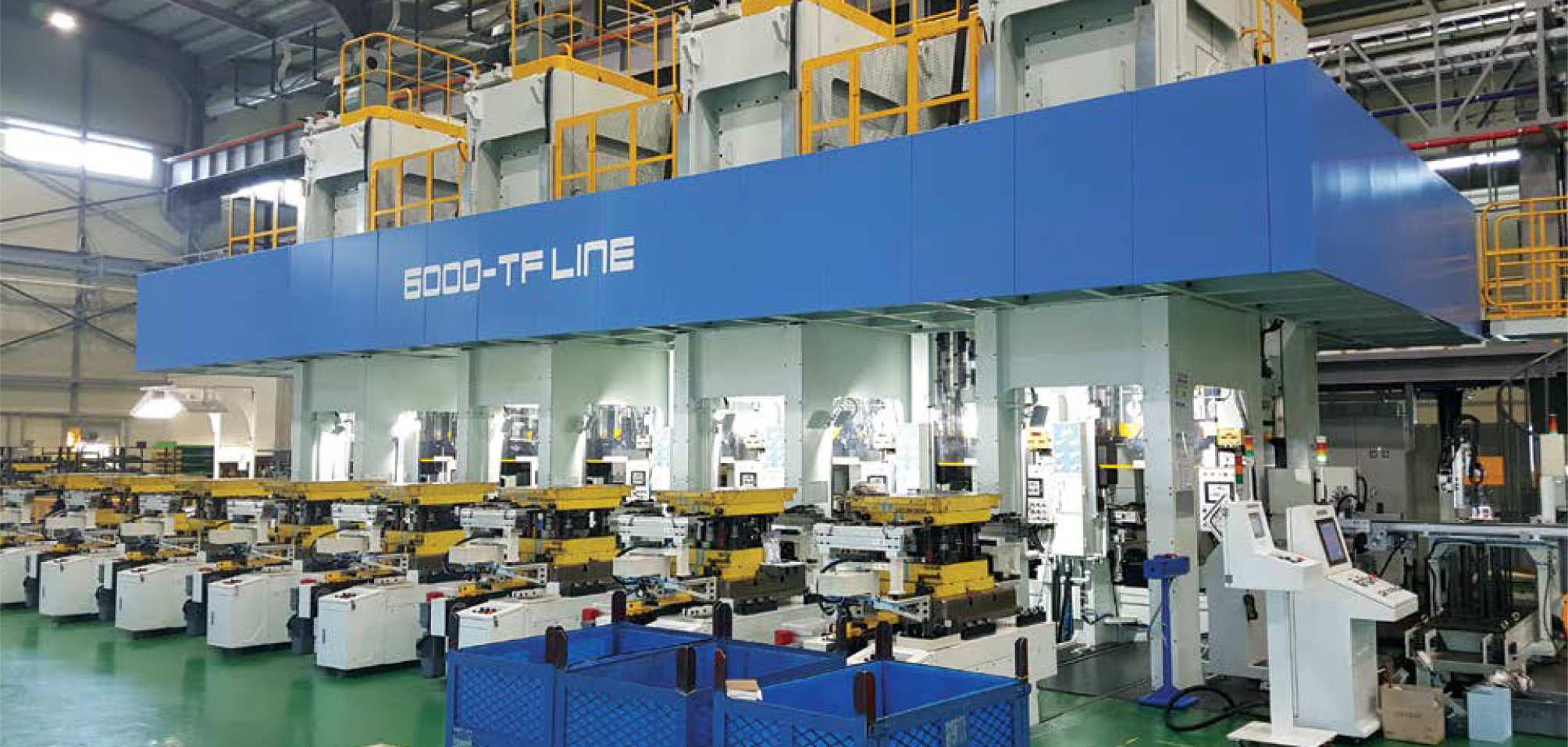

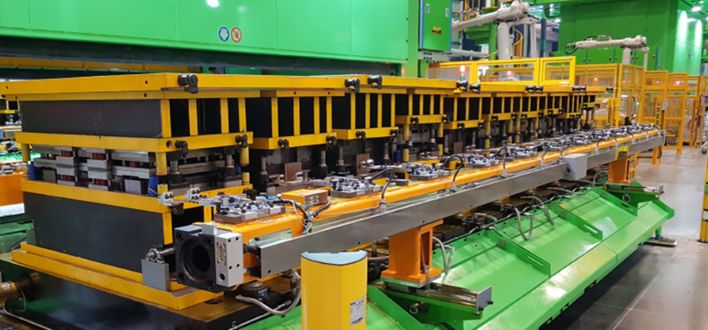

Automatic robot line for transferring workpiece in tandem press line or Transfer Press.
| SPECIFICATION | |
| Stroke Feed (X) | ~1500mm |
| Stroke Clamp (Y) | ~500mm |
| Stroke Lift (Z) | ~350mm |
| Drive Feed (X) | AC Servo Motor Type |
| Drive Clamp (Y) | AC Servo Motor Type |
| Drive Lift (Z) | AC Servo Motor Type |
| Feed Bar Connection | Automatic by Pneumatic System |
